Ecowitt WS80 Ultrasonic Anemometer, UV, Light, Temperature & Humidity 6-in-1 Sensor

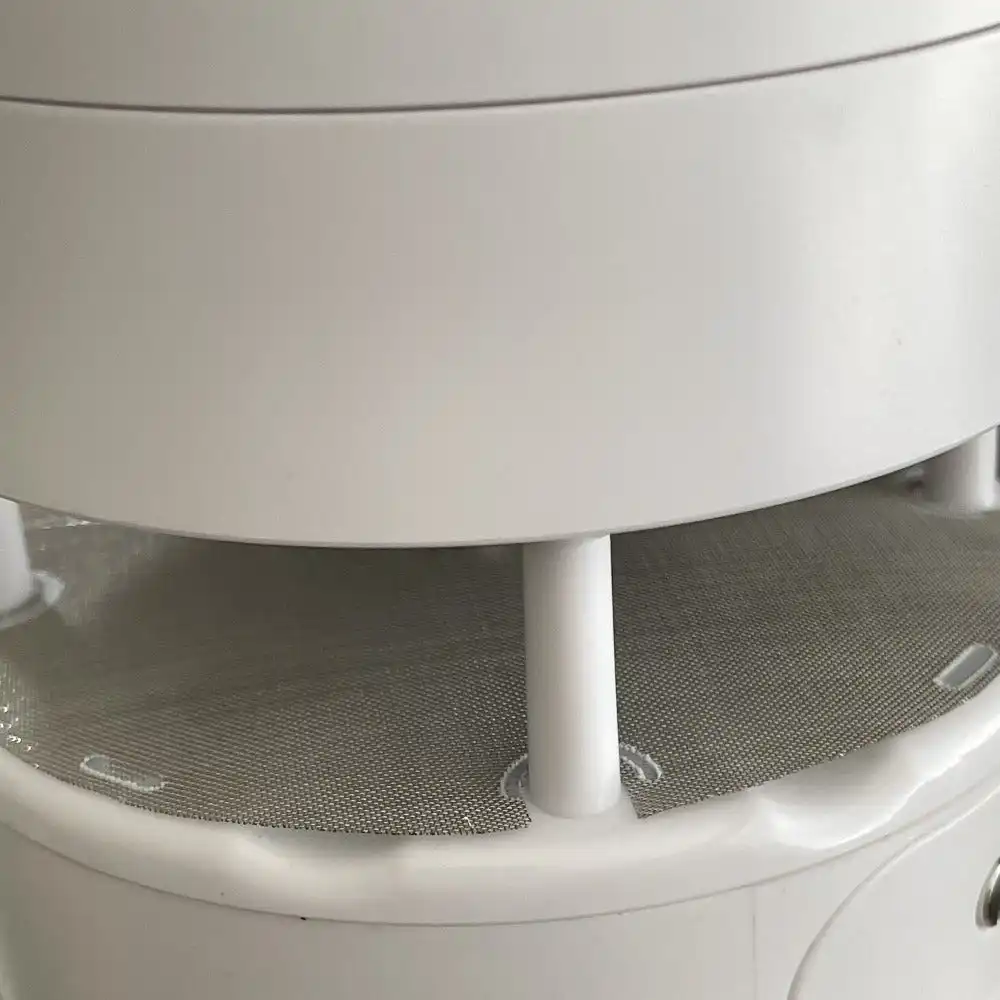

Add the WS80 solar powered ultrasonic anemometer with light, temperature and humidity to the Ecowitt WiFi gateway to obtain additional readings on your system. This revised sensor has no moving parts and an improved sensor plate for better performance during rain events.

Features

• Measures the following attributes
  • Wind direction
  • Wind speed
  • UV
  • Light level
  • Temperature
  • Humidity
• For use with an existing Ecowitt display console or WIFI gateway

To see how many of each variety of sensors your equipment supports, click here to view the latest Ecowitt sensor matrix.



Included

• Ultrasonic 6-in-1 Sensor sensor array with revised design for improved accuracy during rainfall. (NO Console or gateway)
• Mounting Arm
• One set of U-bolts for installation on 1.25 "to 2" / 30mm to 50mm pole (not supplied)
• User Manual

Technical & Manual

• Transmission distance in open field: 150m (490 feet)
• 868MHz UK and European frequency
• Wind speed range: 0 - 40 m/s (0 - 89 mph)
• Wind speed accuracy: ±0.5m/s (1.5 mph) at speeds of < 10 m/s (22 mph) and ±5% at speeds of ≥ 10 m/s (22 mph)
• Wind gust: maximum of last 28 seconds
• UV-Index range: 0 - 15
• Light range: 0 – 120 kLux
• Light accuracy: ± 15%
• Sensor reporting interval: 4.8 seconds
• Power consumption
• Solar panel (built-in): 6.5V/4mA
• Backup Power: 2 x AA 1.5V LR6 Alkaline or 2 x AA 1.5V Lithium batteries (not included)

The manual for the WS80 Ultrasonic Anemometer with UV, Light, Temperature and Humidity can be viewed by clicking here.



Product Warranty

2 year warranty from date of purchase from May 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

See our terms and conditions for full details of our warranty details.
