Ecowitt HP2550_C TFT Full Colour Display Console & Power Cable

The Ecowitt HP2550_C comprises a large 7" TFT full colour display making it an advanced weather console with full internet access.

Unlike some other consoles, indoor temperature, humidity and atmospheric pressure are obtained from a separate sensor (WN32A 3-in-1 sensor not included) to ensure readings are not skewed by warmth from the display.

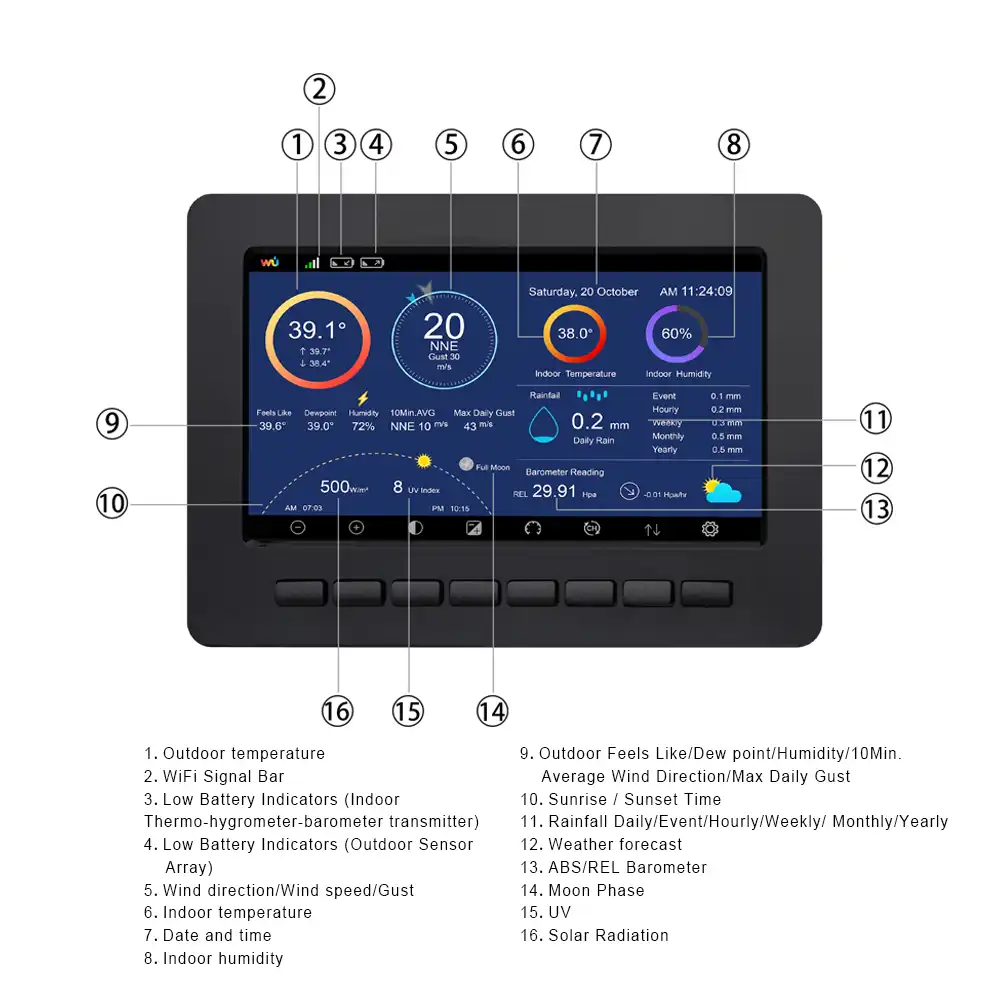

The 7" high resolution TFT colour screen has a friendly & well-designed interface with two selectable backgrounds (dark or light). The console displays wind speed and direction, dew point, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation and UV. There is also a full colour weather forecast function and optional microSD memory card to store historical data with a 1GB card storing at least 10 years or data.

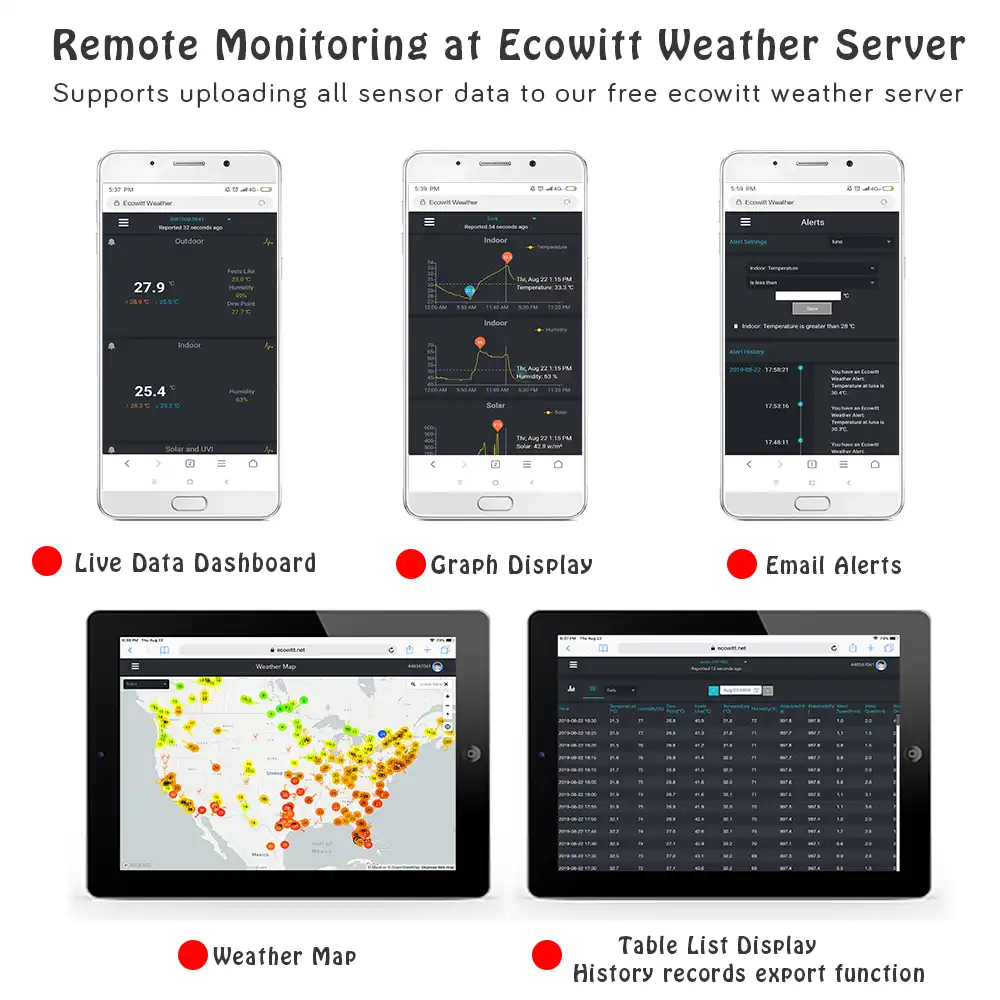

This indoor data, along with the outdoor sensor data is uploaded to the FREE Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on an iOS, Google App, or Ecowitt weather website in a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to The UK MetOffice WoW service, Weather Underground, WeatherCloud and your own web server.

Unlike some other stations, the Ecowitt HP2550 console can be used with a variety of sensors, click here to view the latest Ecowitt sensor matrix.

All of these are available to view in the App, or online via Ecowitt.net and in the 3rd party services that support this sensor type.

Note this item requires existing 868MHz Ecowitt sensors and WN32A sensor to display data.



Included

The Ecowitt HP2550-C console includes the following items:

• HP2550-C WiFi 7" full colour TFT console
• USB power cable (5v USB adapter required)
• Instruction manual via electronic delivery (100 comprehensive pages)




Technical & Manual

The HP2550-C consists of:

HP2550-C 7" Full Colour TFT Screen

• Requires WN32A 3-in-1 separate indoor sensor to display
• Indoor Temperature
• Indoor Humidity
• Atmospheric pressure sensor
• Configure WiFi via console
• Configure additional sensors via console
• Publishes sensor data to Internet based weather services including
• Ecowitt weather server: ecowitt.net.
• WeatherUnderground.com
• WeatherCloud
• MetOffice WoW
• Only sensor data supported by each specific service will be uploaded.

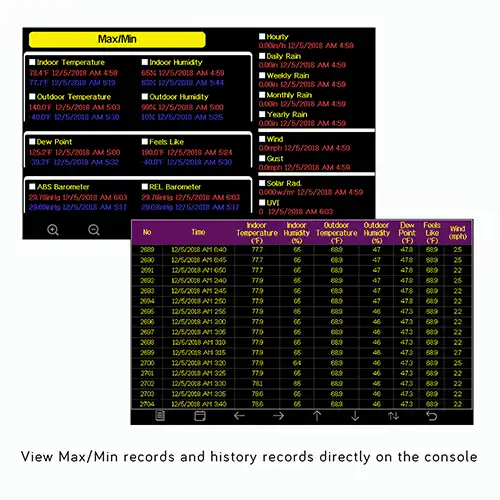

• View historical records from your weather station with optional microSD card
• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 300 feet / 100m (in open areas)
• Powered from standard 5v USB socket, connecting cable inlcuded
• 868MHz UK and European frequency



A copy of the HP2551 weather station instructions can be downloaded by clicking here. These include details of the use of the HP2550-C display unit.



Product Warranty

2 year warranty from date of purchase from May 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

See our terms and conditions for full details of our warranty details.
