Ecowitt HP2560_C TFT Full Colour Display Console & Power Cable

The Ecowitt HP2560_C comprises a large 7" TFT full colour display with inbuilt temperature, humidity and atmospheric pressure sensors making it an advanced weather console with full internet access.  Now with a space saving slimmer frame than the previous HP2550 console, but still the same exceptional screen clarity.

The 7" high resolution TFT colour screen has a friendly & well-designed interface with two selectable backgrounds (dark or light). The console displays wind speed and direction, dew point, rainfall, indoor outdoor temperature and humidity, barometric pressure, moon phase, solar radiation and UV. There is also a full colour weather forecast function and optional microSD memory card to store historical data with a 1GB card storing at least 10 years or data.

This indoor data, along with the outdoor sensor data is uploaded to the FREE Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on an iOS, Google App, or Ecowitt weather website in a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can share your data further afield with free access to The UK MetOffice WoW service, Weather Underground, WeatherCloud and your own web server.

Unlike some other consoles, the Ecowitt HP2560 can be used with a variety of sensors,  click here to view the latest Ecowitt sensor matrix.

All of these are available to view in the App, or online via Ecowitt.net and in the 3rd party services that support this sensor type.

Note this item requires existing 868MHz Ecowitt sensors to display data.



Included

The Ecowitt HP2560-C console includes the following items:

• HP2560-C WiFi 7" full colour TFT console
• Clip on stand for desk use or can be mounted on a wall
• USB cable for powering via your own USB power supply

• Instruction manual via electronic delivery (100 comprehensive pages)




Technical & Manual

The HP2560-C consists of:

HP2560-C 7" Full Colour TFT Screen

• Built in sensors to display
• Indoor Temperature
• Indoor Humidity
• Atmospheric pressure sensor
• Configure WiFi via console
• Configure additional sensors via console
• Publishes sensor data to Internet based weather services including
• Ecowitt weather server: ecowitt.net.
• WeatherUnderground.com
• WeatherCloud
• MetOffice WoW
• Only sensor data supported by each specific service will be uploaded.

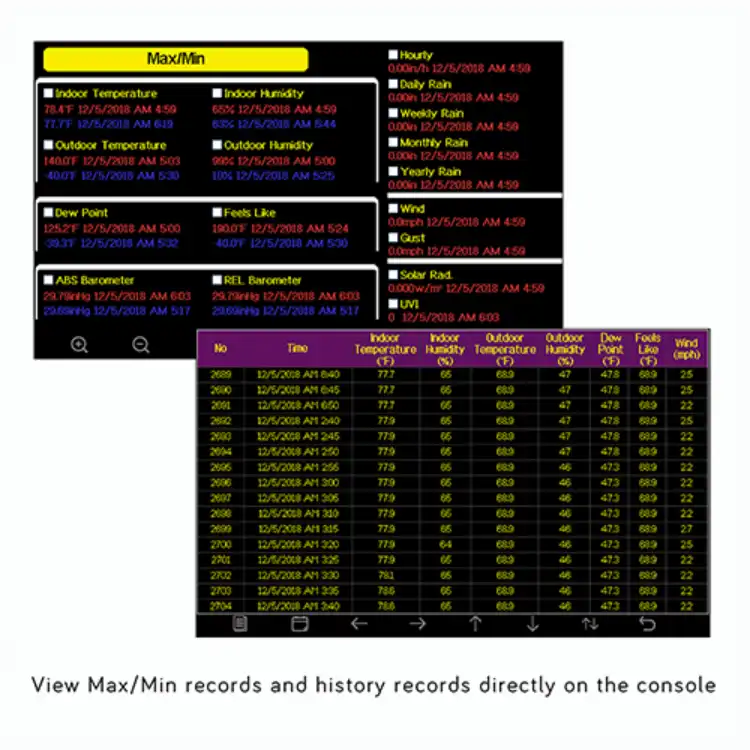

• View historical records from your weather station with optional microSD card
• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 300 feet / 100m (in open areas)
• 868MHz UK and European frequency
• Power cable to connect to standard USB socket



A copy of the HP2560 TFT console instructions can be downloaded by clicking here.



Product Warranty

2 year warranty from date of purchase from May 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

See our terms and conditions for full details of our warranty details.
