Ecowitt WS3801/WS3901 7.5" Display, 7-in-1 Array with Haptic Rain & Sonic Wind Sensor

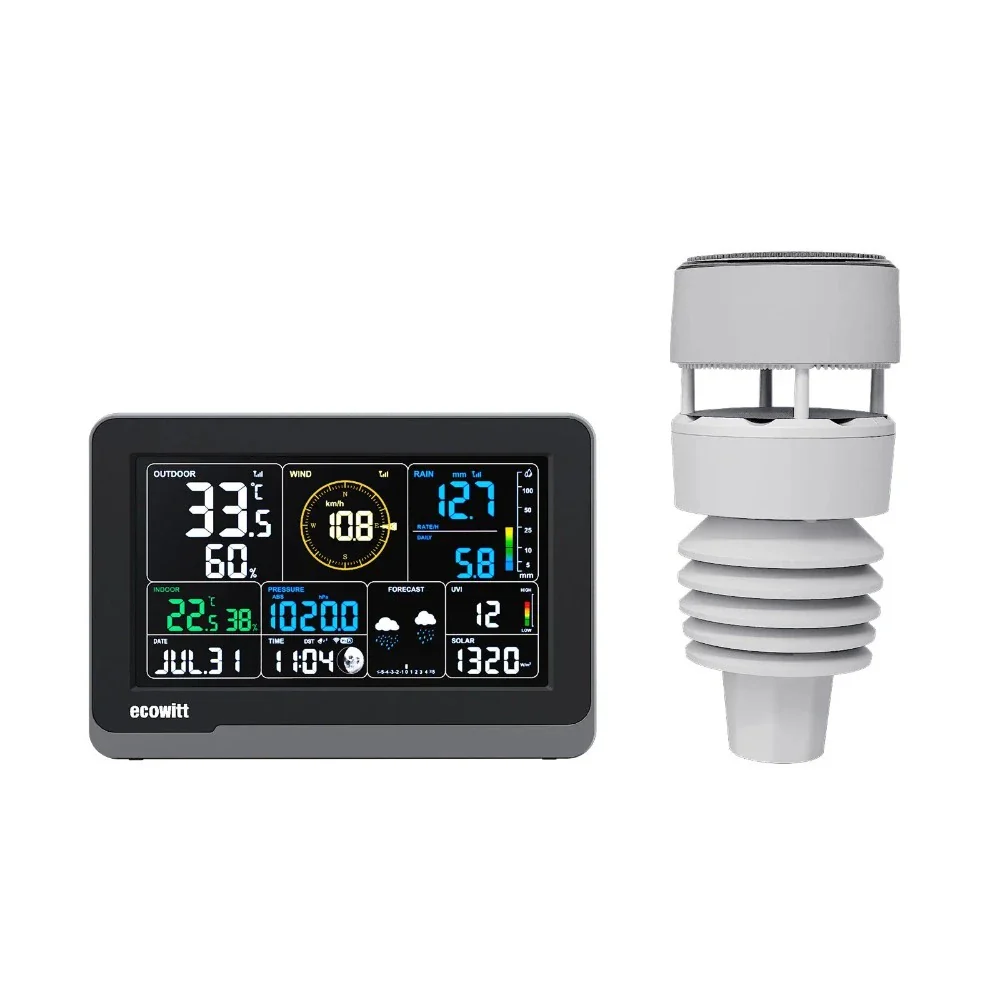

The Ecowitt WS3801 is a mono screen weather station and the WS3901 the colour equivalent. Both weather stations have a large 7.5" LCD display with Wi-Fi and display both indoor and outdoor conditions.
These are some of the first consoles to support connection to the Ecowitt Internet of Things (IoT) devices, such as the Ecowitt WFC01 and AC1100, achieving smart control through the Ecowitt App.
The console connects to your 2.4GHz Wi-Fi network for viewing uploaded data from anywhere on your phone, tablet, or computer browser, all for free when uploaded to Ecowitt.net
The display has built-in temperature, humidity and barometric pressure sensors receiving readings from Ecowitt sensors on the 868MHz frequency.

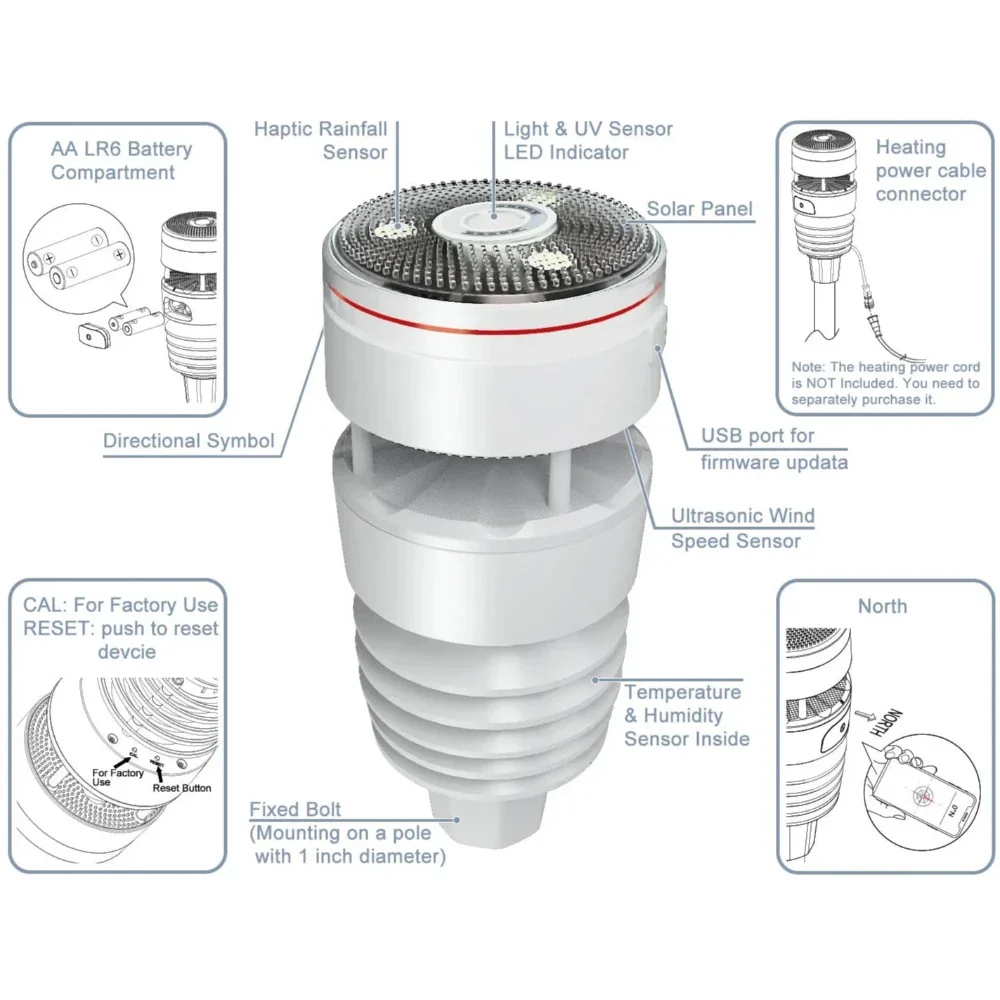

Included is the WS90 7-in-1 sensor array which transmits sonic wind speed & direction, haptic rainfall, UV, solar radiation, temperature and humidity to the console. The 7-in-1 sensor array also includes a solar panel to power the unit during daylight and extend the battery runtime.

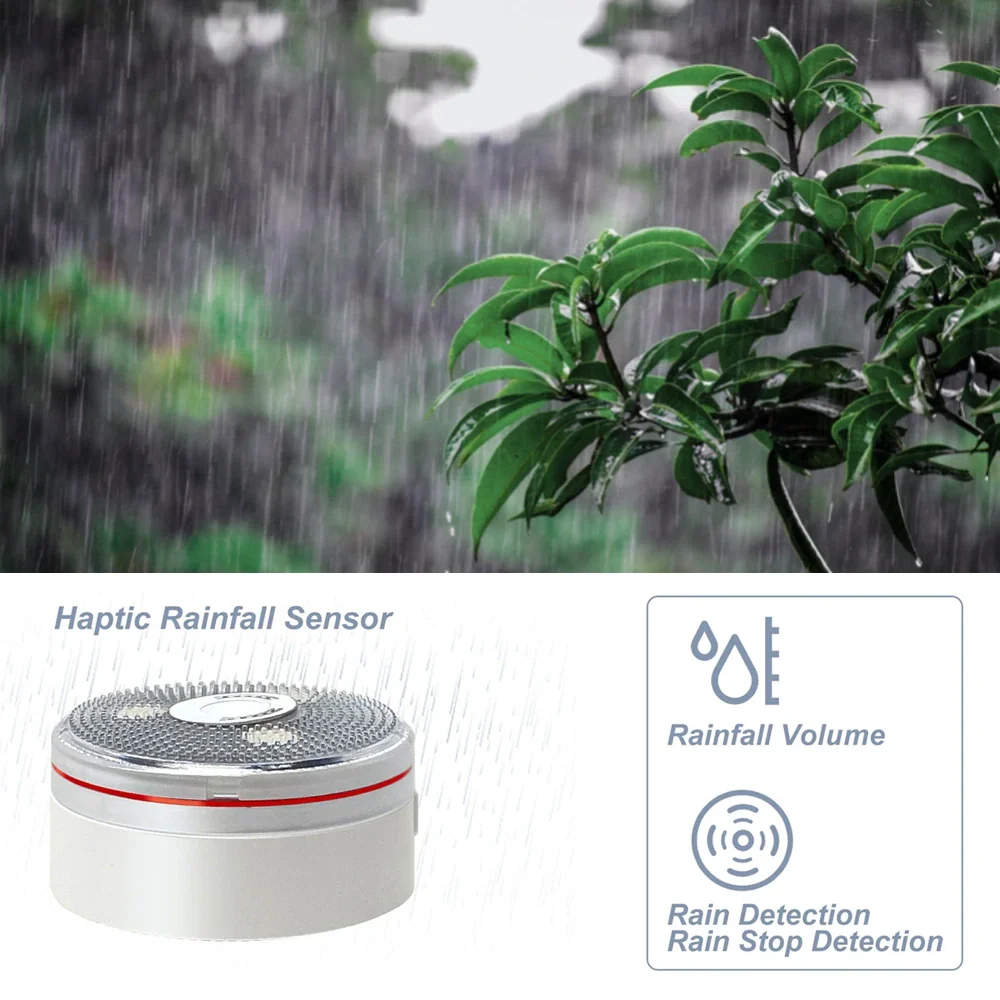

The WS90's unique design no longer uses the traditional tipping bucket rain gauge, but a haptic sensor which measures rainfall. The revised rainfall sensor is slightly sloped to improve accuracy and prevent rain pooling and also includes rain start detection before any measurable rain has fallen.
Unlike some other consoles, these Ecowitt models can be used with a variety of additional sensors, click here to view the latest Ecowitt sensor matrix and also view further details of which sensors are visible on the screen in the Technical Tab above.
Includes
The package contains:
- Either WS3800 mono 7.5" console
- Or WS3900 colour 7.5" console
- UK Power Adapter
- External WS90 Haptic 7-in-1 sensor array
- Requires 5 x AA batteries (not included)
Technical & Manual
Station features:
- Either WS3800 Mono 7.5" LCD console
- or WS3900 Colour 7.5" LCD console
- Five icon forecast
- Internet controlled clock for accuracy
- Indoor temperature and humidity
- Solar and battery powered 7-in-1 outdoor sensor with
- Outdoor temperature and humidity
- Haptic rain measurement
- Sonic wind speed and direction sensor
- UV sensor
- Light sensor for measurement in Lux 0-400k, fc or w/m2
- Pressure measurement in hPa, historical pressure for last 12, 24, 48 and 72 hours
- Pressure trend
- Daily minimum and maximum values
- Measurement alarms
- External sensor calibration
- 868MHz UK and EU frequency
- Mains powered with backup battery (1 day backup)
- 2.4GHz WiFi with 30 meter unobstructed transmission range
- FREE data upload to Ecowitt.net, Weather Underground, UK MetOffice (WoW), Weather Cloud & your own customer server
- Sensor signal reception indicator
- Mountable external WS90 sensor on pole up to 25mm diameter (1 inch)
Electronic manuals for the various components can be downloaded below:
Sensor Data Can be Displayed directly on the Console:
|
Sensor Model |
Max QTY |
Displayed Readings |
|
WS90 (included) |
1 |
Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall |
|
WS80 |
1 |
Outdoor temperature & humidity, light, UV, wind speed/direction |
|
WS69 |
1 |
Outdoor temperature & humidity, light, UV, wind speed/direction, rainfall |
|
WS68 |
1 |
Light, UV, wind speed/ direction, |
|
WH40 |
1 |
Rainfall |
|
WN32P |
1 |
Indoor temperature, humidity and pressure |
|
WN32 |
1 |
Outdoor temperature and humidity |
|
WH45/WH46 |
1 |
WH45: CO2, PM2.5, PM10, temperature and humidity WH46: CO2, PM1.0, PM2.5, PM4.0, PM10, temperature and humidity |
|
WN31/WN30/WN36 |
8 |
WN31: Temperature and humidity WN30: Temperature probe sensor WN36: Pool temperature |
Sensor Data Can Only be Uploaded for viewing in the Cloud：
|
Sensor Model |
Max QTY |
Function |
|
WH57 |
1 |
Lightning detection |
|
WH41/WH43 |
4 |
PM2.5 Air Quality |
|
WH55 |
4 |
Water leak detection |
|
WH51L |
8 |
Soil moisture |
|
WH51 |
||
|
WN34L/S/D |
8 |
Soil/liquid temperature |
|
WN35 |
8 |
Leaf wetness |
IoT Device：
|
Sensor Model |
Max QTY |
Function of Device |
|
|
WFC01 |
16 |
Smart water timer |
|
|
AC1100 |
Smart plug |
||
Product Warranty
2 year warranty from date of purchase from January 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.
See our terms and conditions for full details of our warranty details.
